Description
TRANE Commercial
แอร์เชิงพาณิชย์ TRANE Air Handling Unit LPCP (Single Skin AHU)
แอร์เชิงพาณิชย์ TRANE Single Skin AHU เทคโนโลยีสำหรับการใช้งานเชิงพาณิชย์ที่หลากหลาย
TRANE AHU แบบต่อท่อลม ชนิดคอยล์น้ำเย็น (Chilled Water Air Handling Unit)
Product Features
• Duct Type Single Skin Air Handling Unit
• Customized model
• Airflow : 1,000-25,000 CFM

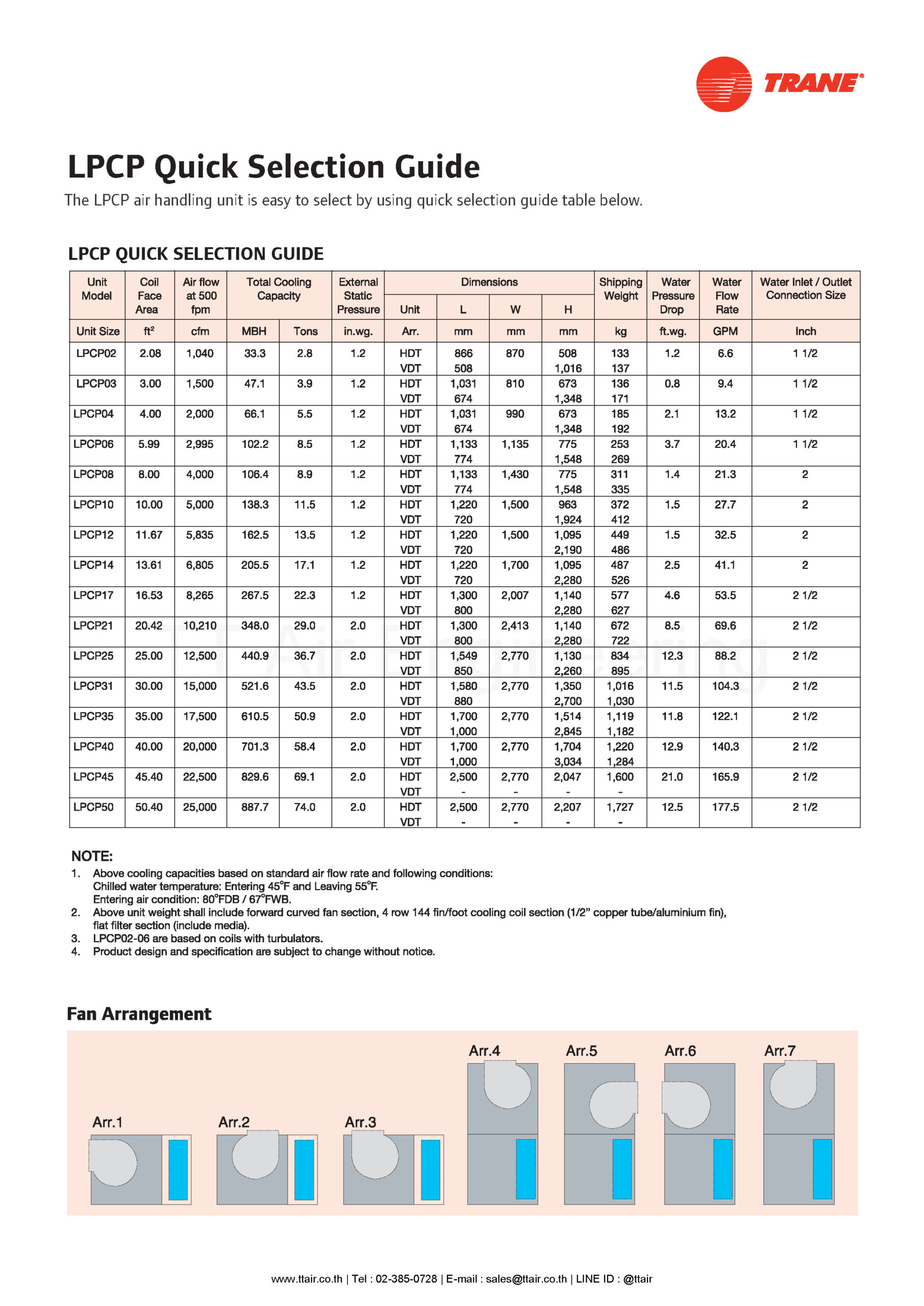

Model
LPCP02 | LPCP03 | LPCP04 | LPCP06 | LPCP08 | LPCP10 | LPCP12 | LPCP14 | LPCP17
LPCP21 | LPCP25 | LPCP31 | LPCP35 | LPCP40 | LPCP45 | LPCP50
Nominal Airflow
1,040 CFM | 1,500 CFM | 2,000 CFM | 2,995 CFM | 4,000 CFM | 5,000 CFM | 5,835 CFM | 6,805 CFM | 8,265 CFM
10,210 CFM | 12,500 CFM | 15,000 CFM | 17,500 CFM | 20,000 CFM | 22,500 CFM | 25,000 CFM

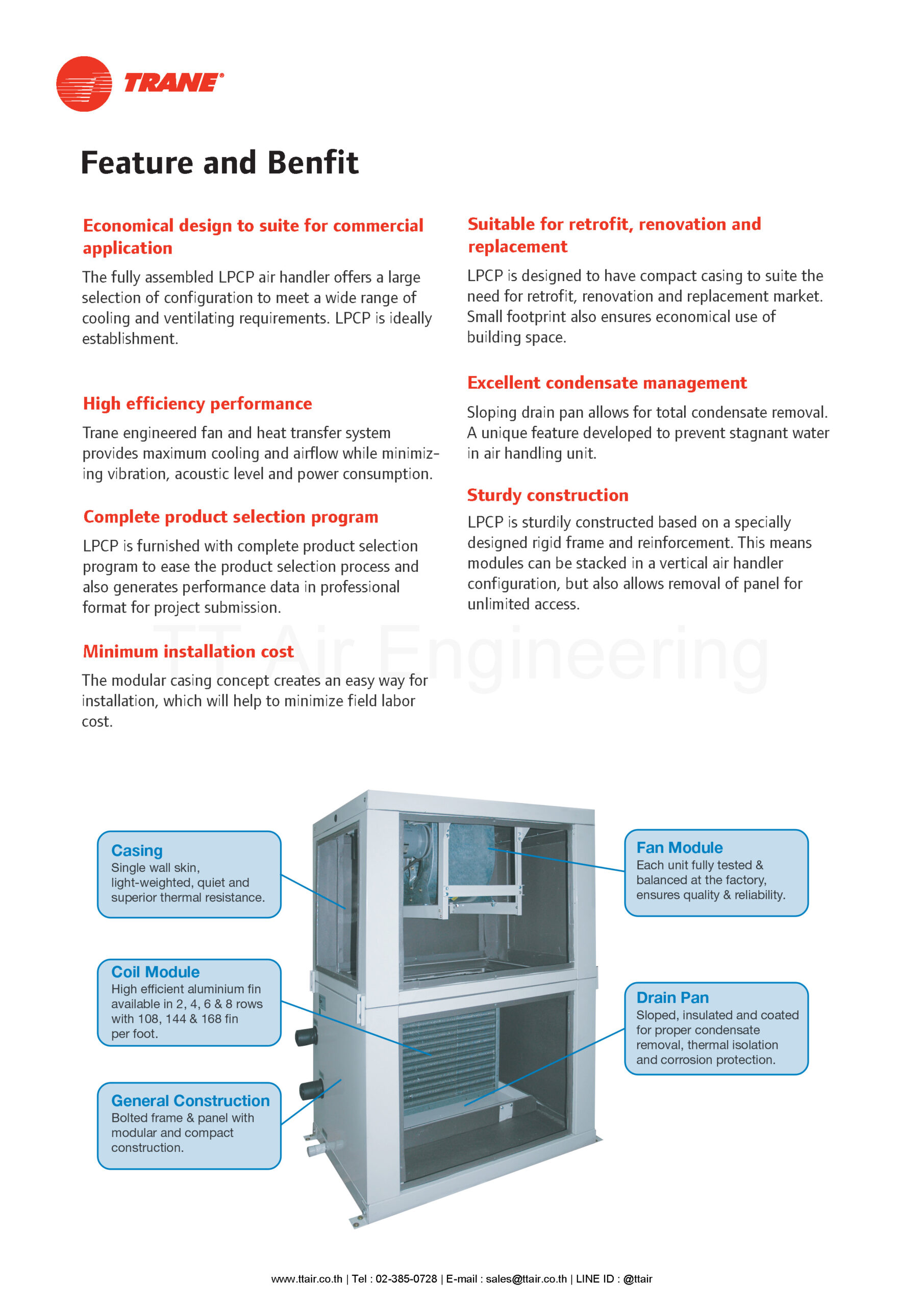

Features and Benfits
Economical design to suite for commercial application
The fully assembled LPCP air handler offers a large selection of configuration to meet a wide range of cooling and ventilating requirements. LPCP is ideally Hitablishments.
High efficiency performance
Trane engineered fan and heat transfer system provides maximum cooling and airflow while minimizing vibration, acoustic level and power consumption.
Complete product selection program
LPCP is furnished with complete product selection program to ease the product selection process and also generates performance data in professional format for project submission.
Minimum instalation cost
The modular casing concept creates an easy way for installation, which will help to minimize field labor cost.
Suitable for retrofit, renovation and replacement
LPCP is designed to have compact casing to suite the need for retrofit, renovation and replacement market. Small footprint also ensures economical use of building space.
Excellent condensate management
Sloping drainpan allows for total condensate removal. A unique feature developed to prevent stagnant water in air handling unit.
Sturdy construction
LPCP is sturdily constructed based on a specially designed rigid frame and reinforcement. This means modules can be stacked in a vertical air handler configuration, but also allows removal of panel for unlimited access.
