TRANE Commercial
แอร์เชิงพาณิชย์ TRANE Air Handling Unit BDVA (Single Skin AHU)
แอร์เชิงพาณิชย์ TRANE Single Skin AHU เทคโนโลยีสำหรับการใช้งานเชิงพาณิชย์ที่หลากหลาย
TRANE AHU แบบต่อท่อลม ชนิดคอยล์น้ำเย็น (Chilled Water Air Handling Unit)
Product Features
• Duct Type Vertical Discharge
• Single Skin Air Handling Unit
• Airflow : 6,000-20,000 CFM (2.83-9.44 CMS)
• 238-660 MBH (70-247 kW)
Model
BDVA075 | BDVA090 | BDVA120 | BDVA150 | BDVA180
Nominal Airflow
7,760 FCM | 9,240 CFM | 12,120 CFM | 15,130 CFM | 18,080 CFM

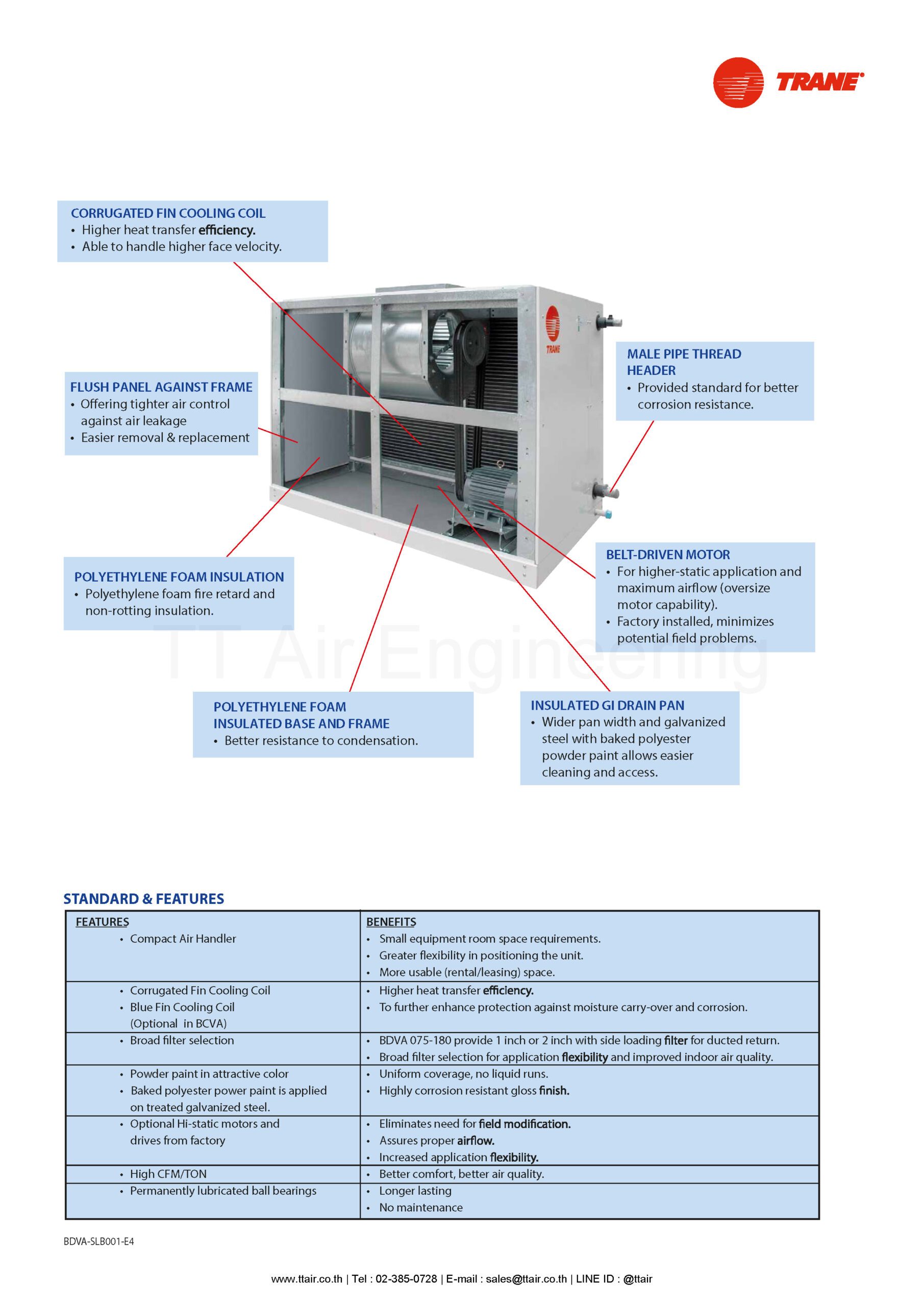

BDVA Chilled Water Air Handling Unit

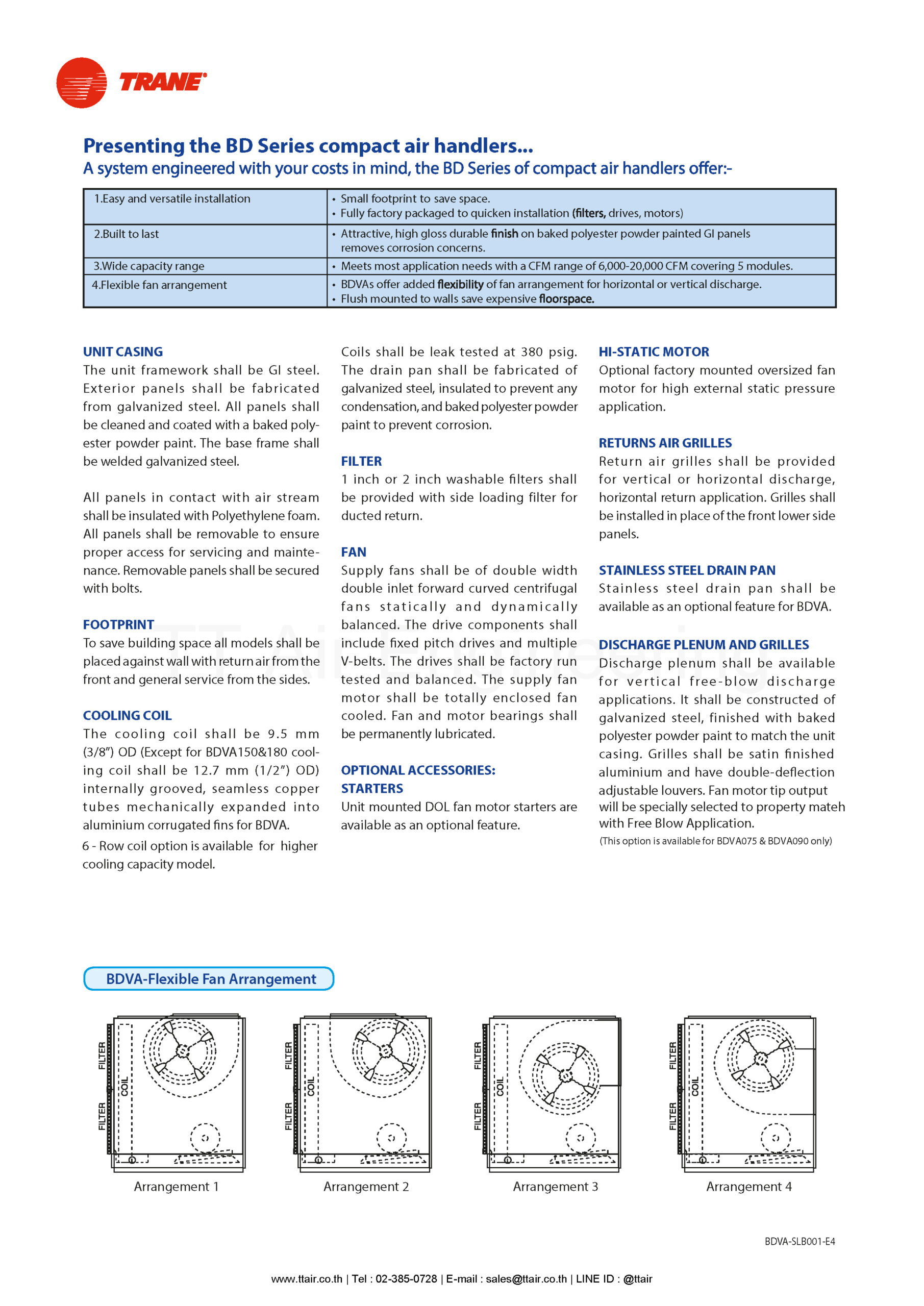

Presenting the BD Series compact air handlers.
A system engineered with your costs in mind, the BD Series of compact air handlers offer.
Easy and versatile installation
• Small footprint to save space.
• Fully factory packaged to quicken installation (filters, drives, motors)
Built to last
• Attractive, high gloss durable finish on baked polyester powder painted GI panels removes corrosion concerns.
Wide capacity range
• Meets most application needs with a CFM range of 6,000-20,000 CFM covering 5 modules.
Flexible fan arrangement
• BDVAs offer added flexibility of fan arrangement for horizontal or vertical discharge.
• Flush mounted to walls save expensive floorspace.
