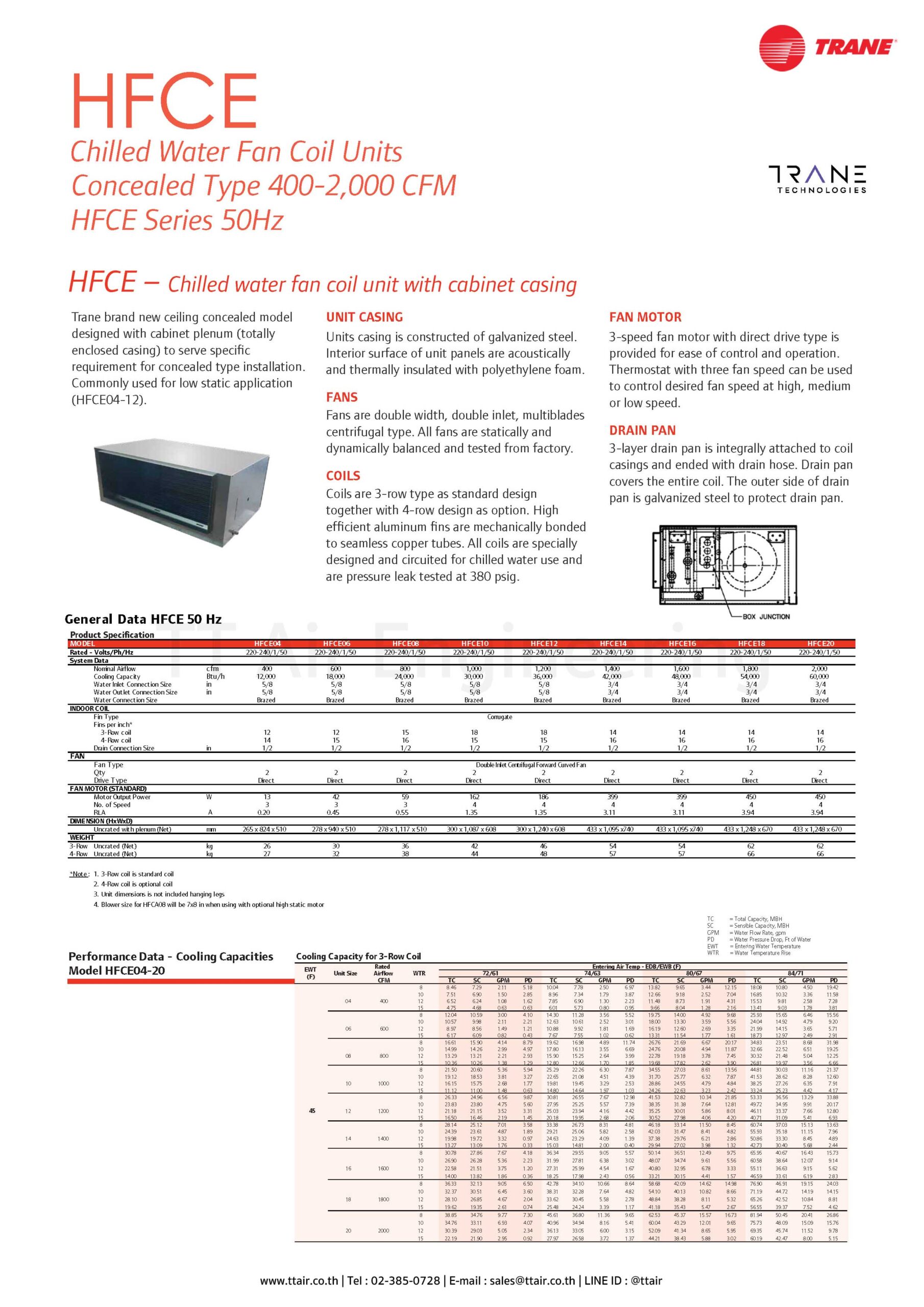

TRANE Chilled Water Fan Coil Unit

แอร์คอยล์น้ำเย็น TRANE HFCE Series แบบท่อลม (Ceiling Concealed Type)
แอร์เชิงพาณิชย์ TRANE เครื่องเป่าลมเย็น Fan Coil Unit (FCU) ชนิดคอยล์น้ำเย็น

รายละเอียดสินค้า
– คอยล์น้ำเย็น แบบต่อท่อลม
– Horizontal Concealed Chilled Water Fan Coil Unit
– Nominal Airflow : 400-2,000 CFM

FCU Model
HFCE04 | HFCE06 | HFCE08 | HFCE10 | HFCE12 | HFCE14 | HFCE16 | HFCE18 | HFCE20

Product Features

HFCE – Chilled water fan coil unit with cabinet casing
Trane brand new ceiling concealed model designed with cabinet plenum (totally enclosed casing) to serve specific requirement for concealed type installation. Commonly used for low static application (HFCE04-12).

• Unit Casing
Units casing is constructed of galvanized steel. Interior surface of unit panels are acoustically and thermally insulated with polyethylene foam.

• Fan
Fans are double width, double inlet, multiblades centrifugal type. All fans are statically and dynamically balanced and tested from factory.

• Coil
Coils are 3-row type as standard design together with 4-row design as option. High efficient aluminum fins are mechanically bonded to seamless copper tubes. All coils are specially designed and circuited for chilled water use and are pressure leak tested at 380 psig.

• Fan Motor
3-speed fan motor with direct drive type is provided for ease of control and operation. Thermostat with three fan speed can be used to control desired fan speed at high, medium or low speed.

• Drain Pan
3-layer drain pan is integrally attached to coil casings and ended with drain hose. Drain pan covers the entire coil. The outer side of drain pan is galvanized steel to protect drain pan.
