TRANE Chilled Water Fan Coil Unit
แอร์คอยล์น้ำเย็น TRANE HFCA Series แบบท่อลม (Ceiling Concealed Type)
แอร์เชิงพาณิชย์ TRANE เครื่องเป่าลมเย็น Fan Coil Unit (FCU) ชนิดคอยล์น้ำเย็น
รายละเอียดสินค้า
– คอยล์น้ำเย็น แบบต่อท่อลม
– Horizontal Concealed Chilled Water Fan Coil Unit
– Nominal Airflow : 400-1,200 CFM

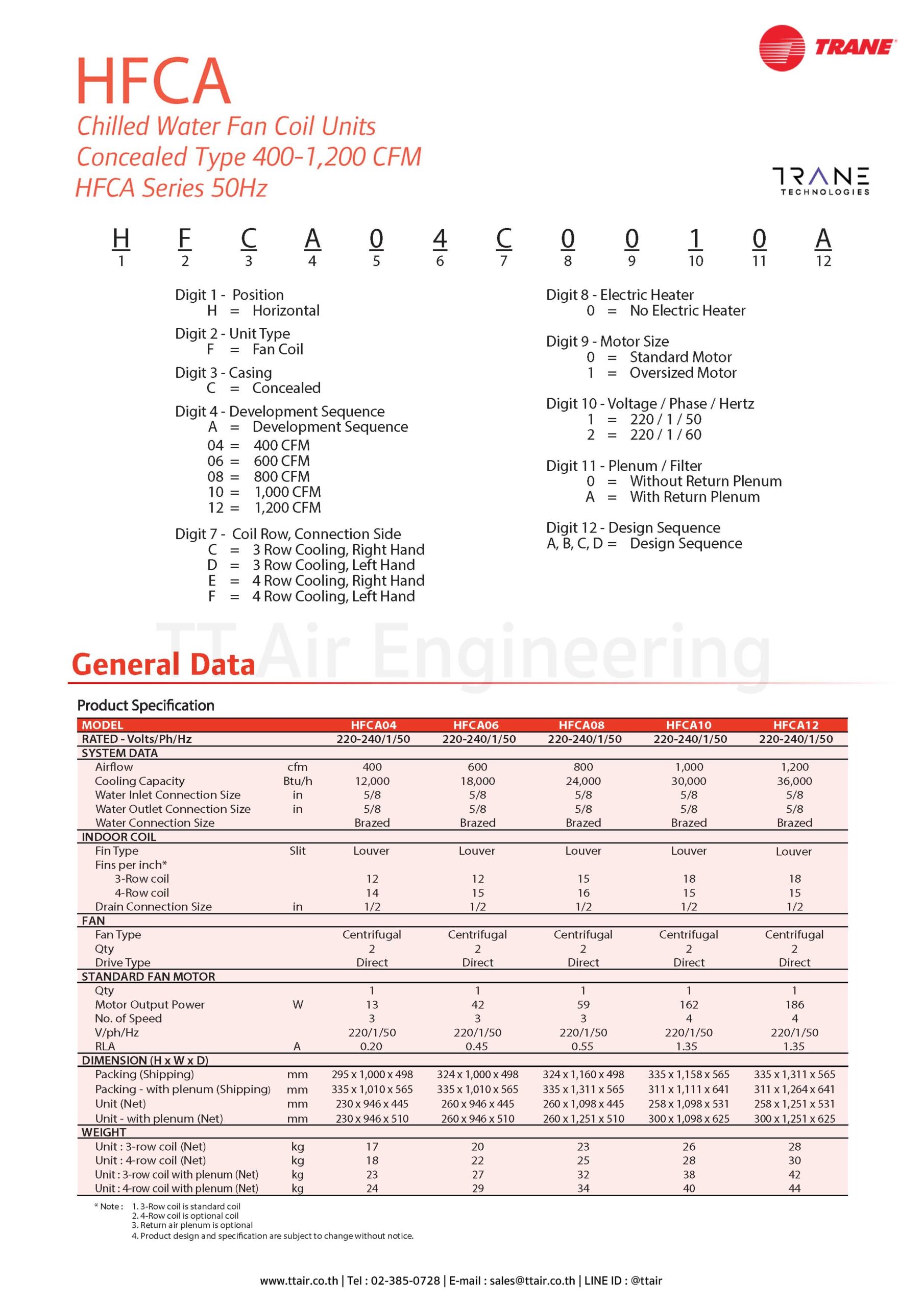

FCU Model
HFCA04 | HFCA06 | HFCA08 | HFCA10 | HFCA12

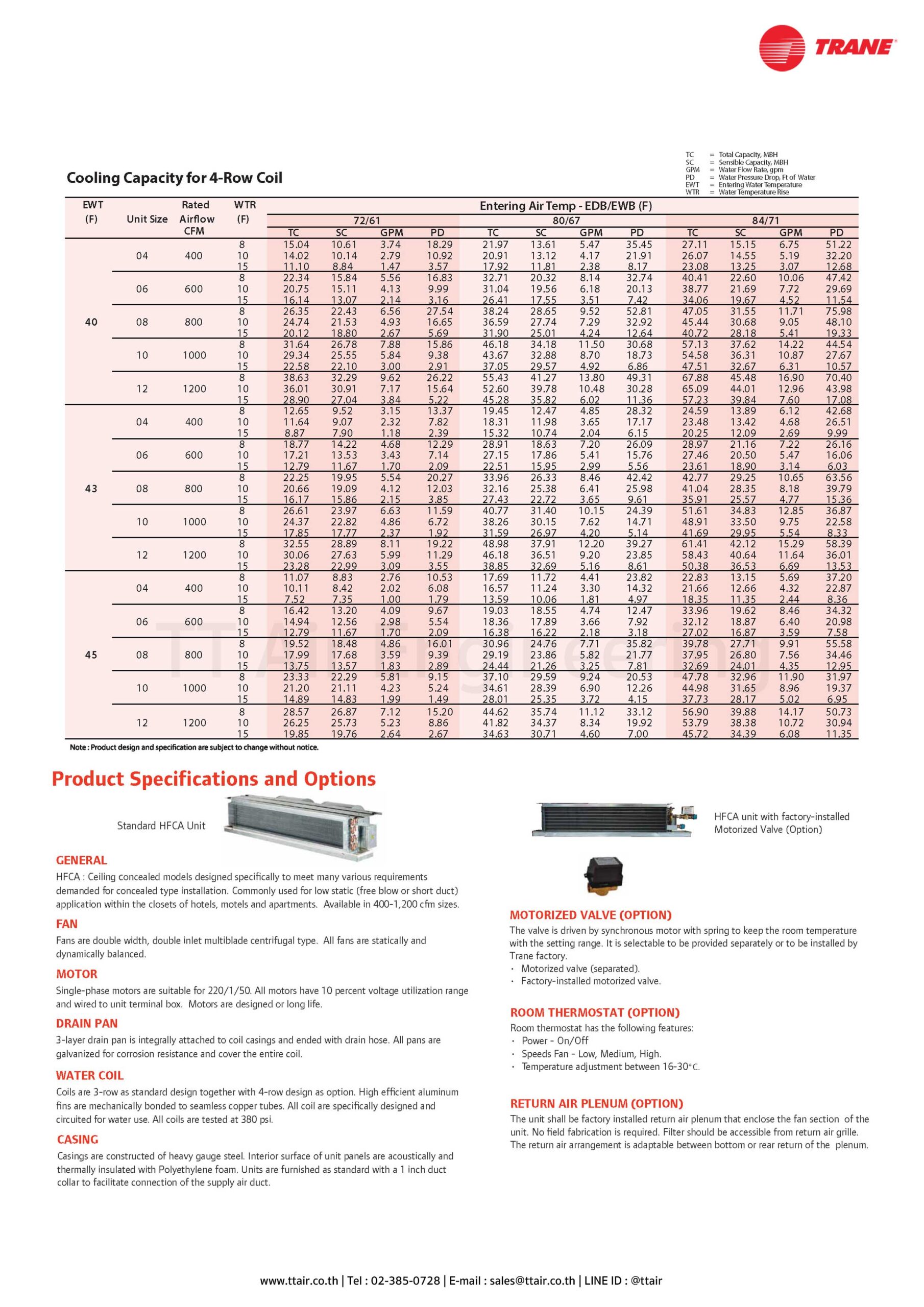

Product Features
HFCA – Ceiling concealed models designed specifically to meet many various requirements demanded for concealed type installation. Commonly used for low static (free blow or short duct) application within the closets of hotels, motels and apartments. Available in 400-1,200 CFM sizes.
• Fan
Fans are double width, double inlet multiblade centrifugal type. All fans are statically and dynamically balanced.
• Motor
Single-phase motors are suitable for 220/1/50. All motors have 10 percent voltage utilzation range and wired to unit terminal box. Motors are designed or long life.
• Drain Pan
3-layer drain pan is integrally attached to coil casings and ended with drain hose. All pans are galvanized for corrosion resistance and cover the entire coil.
• Water Coil
Coils are 3-row as standard design together with 4-row design as option. High efficient aluminum fins are mechanically bonded to seamless copper tubes. All coil are specifically designed and ircuited for water use. All coils are tested at 380 psi.
• Casing
Casings are constructed of heavy gauge steel. Interior surface of unit panels are acoustically and thermally insulated with Polyethylene foam. Units are furnished as standard with a 1 inch duct collar to faciltate connection of the supply air duct.
