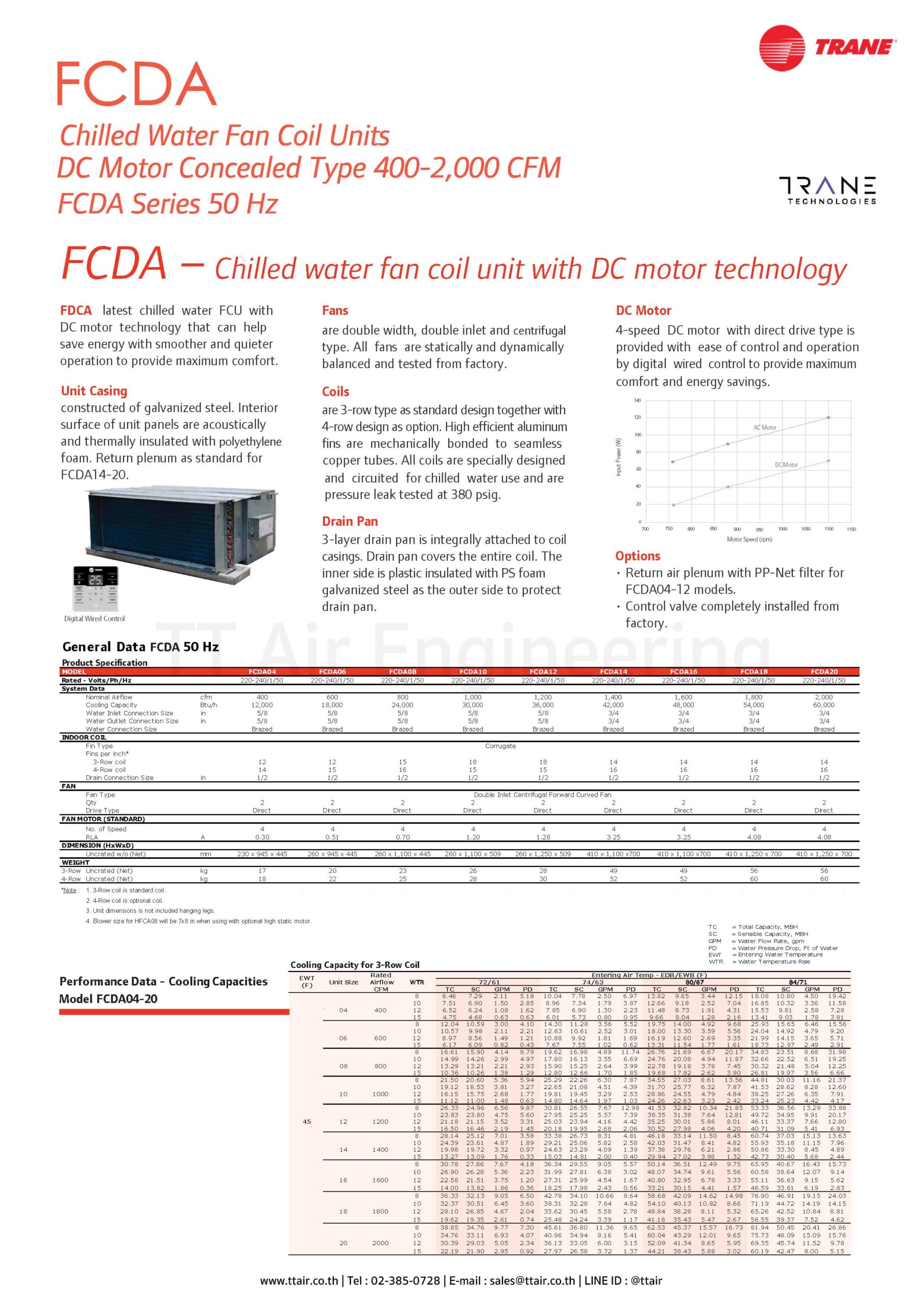

TRANE Chilled Water Fan Coil Unit

แอร์คอยล์น้ำเย็น TRANE FCDA Series แบบท่อลม (Ceiling Concealed Type)
แอร์เชิงพาณิชย์ TRANE เครื่องเป่าลมเย็น Fan Coil Unit (FCU) ชนิดคอยล์น้ำเย็น

รายละเอียดสินค้า
– คอยล์น้ำเย็น แบบต่อท่อลม
– Horizontal Concealed Chilled Water Fan Coil Unit
– Nominal Airflow : 400-2,000 CFM
– Brushless DC Motor with Digital Wired Control

FCU Model
FCDA04 | FCDA06 | FCDA08 | FCDA10 | FCDA12 | FCDA14 | FCDA16 | FCDA18 | FCDA20

Product Features

FCDA – Chilled Water Fan Coil Unit with DC motor technology

FDCA latest chilled water FCU with DC motor technology that can help save energy with smoothearnd quieter operation to provide maximum comfort.

• Unit Casing
Unit Casing constructed of galvanized steel. Interior surface of unit panels are acoustically and thermally insulated with polyethylene foam. Return plenum as standard for FCDA14-20.

• Fan
Fans are double width, double inlet and centrifugal type. All fans are statically and dynamically balanced and tested from factory.

• Coil
Coils are 3-row type as standard design together with 4-row design as option. High efficient aluminum fins are mechanically bonded to seamless copper tubes. All coils are specially designed and circuited for chilled water use and are pressure leak tested at 380 psig.

• Drain Pan
3-layer drain pan is integrally attached to coil casings. Drain pan covers the entire coil. The inner side is plastic insulated with PS foam galvanized steel as the outer side to protect drain pan.

• DC Motor
4-speed DC motor with direct drive type is provided with ease of control and operation by digital wired control to provide maximum comfort and energy savings.

• Option
– Return air plenum with PP-Net filter for FCDAO04-12 models.
– Control valve completely installed from factory.
