Carrier Chilled Water Fan Coil Unit

แอร์คอยล์น้ำเย็น Carrier 42CMS-W Series แบบท่อลม คอยล์เย็นซ่อนในฝ้าเพดาน (Ceiling Concealed Duct Type)
แอร์เชิงพาณิชย์ Carrier เครื่องเป่าลมเย็น Fan Coil Unit (FCU) ชนิดคอยล์น้ำเย็น

รายละเอียดสินค้า
– Ceiling Concealed Duct Type
– คอยล์น้ำเย็นแบบซ่อนในฝ้า ต่อท่อลม
– Nominal Air Flow : 400-2,000 CFM
– ชุดรีโมทมีสาย/ไร้สาย
– รับประกันคอมเพรสเซอร์ และอุปกรณ์อื่นๆ 1 ปี

FCU Model
42CMS004W2 | 42CMS004W3 | 42CMS006W2 | 42CMS006W3 | 42CMS008W3 | 42CMS008W4
42CMS010W3 | 42CMS010W4 | 42CMS012W3 | 42CMS012W4 | 42CMS014W3 | 42CMS014W4
42CMS016W3 | 42CMS016W4 | 42CMS020W3 | 42CMS020W4

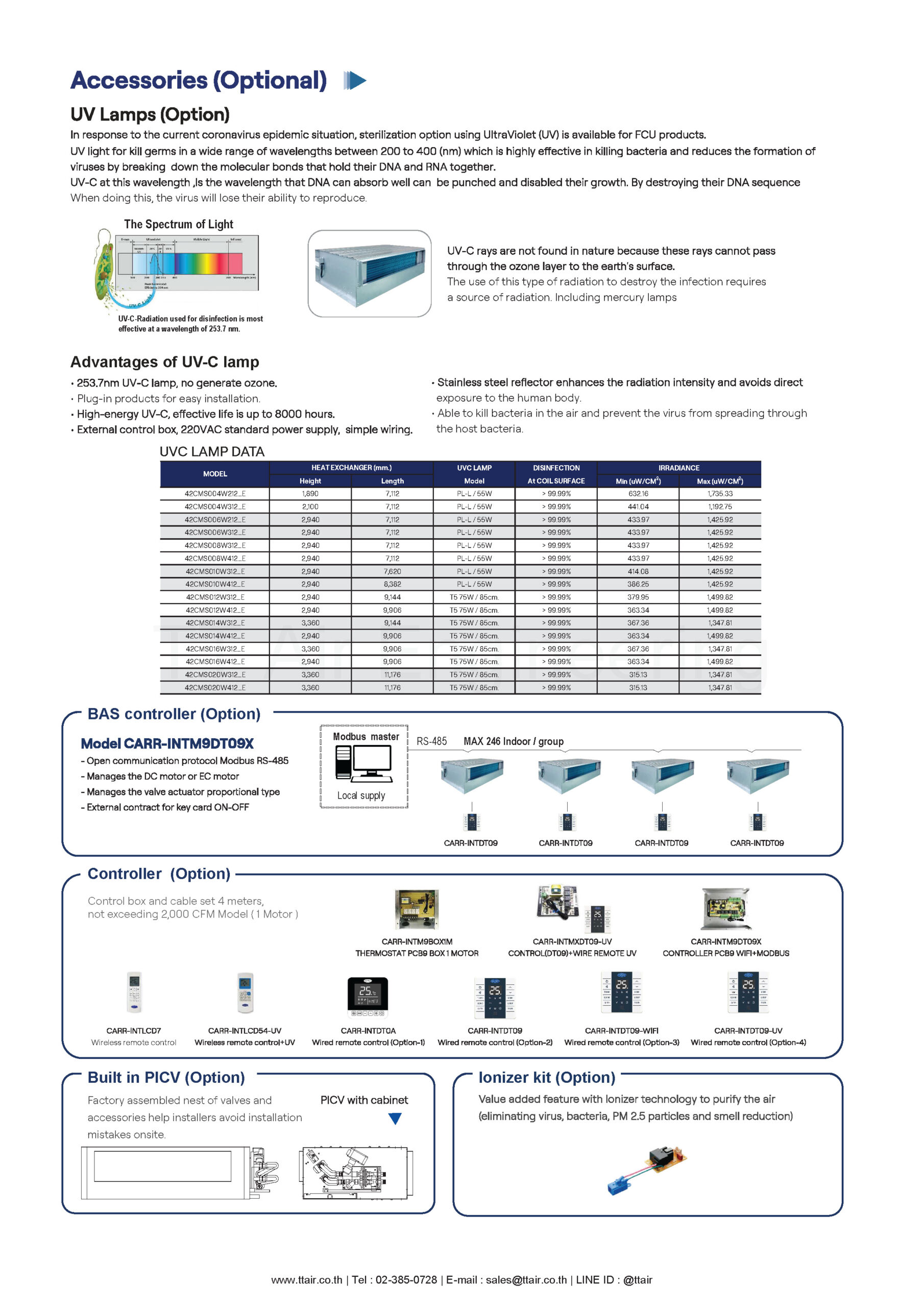

Controller
Control box and cable set 4 meters, not exceeding 2,000 CFM Model (1 Motor)
CARR-INTM9BOX1M Thermostat PCB9 Box 1 Motor
CARR-INTMXDT09-UV Control (DT09) + Wired Remote UV
CARR-INTM9DT09X Controller PCB9 WiFi + MODBUS
CARR-INTLCD54 Wireless Remote Control
CARR-INTLCD54-UV Wireless Remote Control + UV
CARR-INTDT09 Wired Remote Control (Option-1)
CARR-INTDT09-WiFi Wired Remote Control (Option-2)
CARR-INTDT09-UV Wired Remote Control (Option-3)

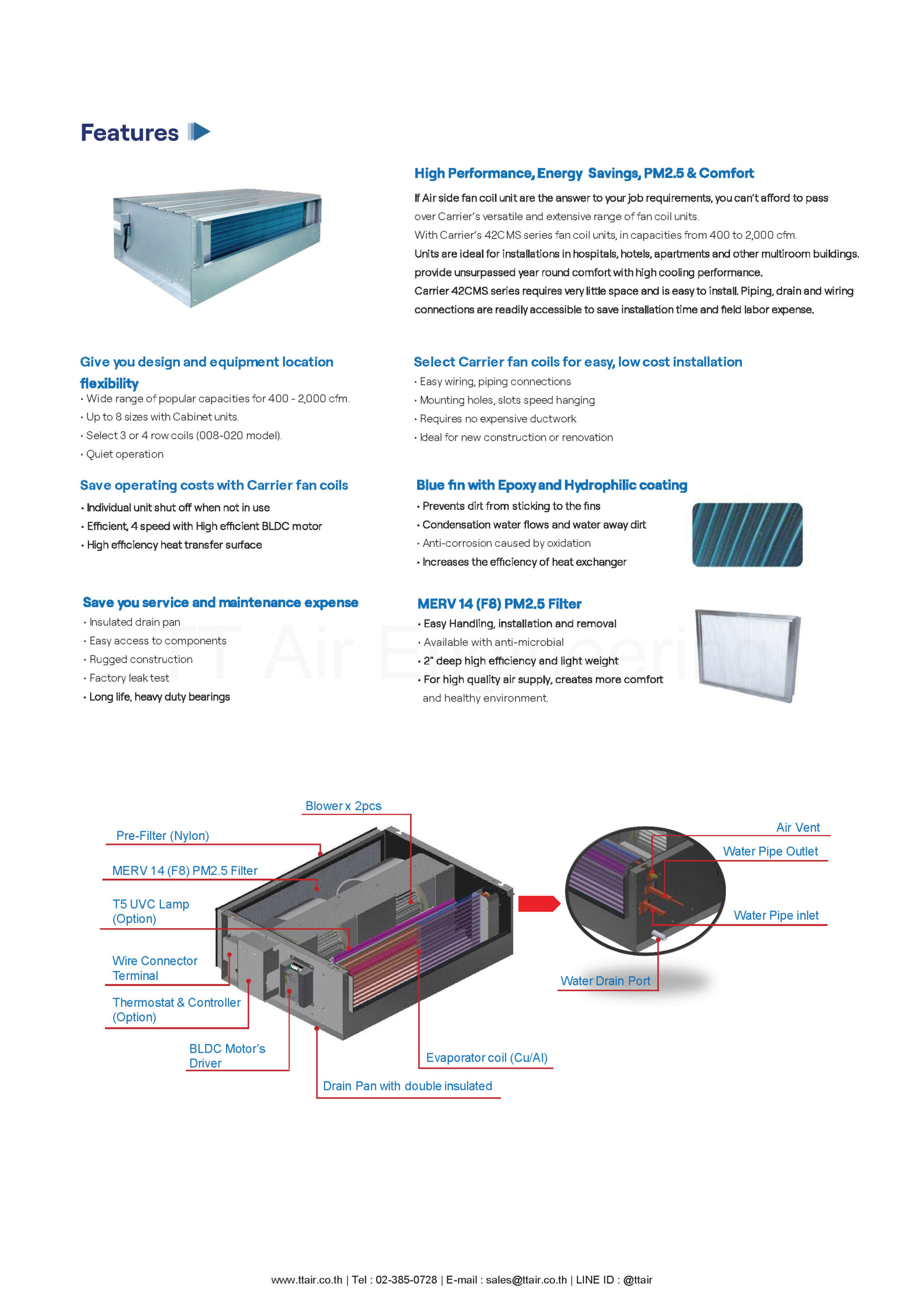

Product Features

• High Performance, Enegry Savings, PM2.5 & Comfort
If Air side fan coil unit are the answer to your job requirements, you can’t afford to pass over Carrier’s versatile and extensive range of fan coil units.
With Carrier’s 42CMS series fan coil units, in capacities from 400 to 2,000 CFM. Units are ideal for installations in hospitals, hotels, apartments and other multiroom buildings. provide unsurpassed year round comfort with high cooling performance.

Carrier 42CMS series requires very little space and is easy to install. Piping, drain and wiring connections are readily accessible to save installation time and field labor expense.

• Give you design and equipment location flexibility
– Wide range of popular capacities for 400-2,000 CFM.
– Up to 8 sizes with Cabinet units.
– Select 3 or 4 row coils (008-020 model).
– Quiet operation.

• Save operating costs with Carrier fan coils
– Individual unit shut off when not in use.
– Efficient, 4 speed with High efficient BLDC motor.
– High efficiency heat transfer surface.

• Save you service and maintenance expense
– Insulated drain pan.
– Easy access to components.
– Rugged construction.
– Factory leak test.
– Long life, heavy duty bearings.

• Select Carrier fan coils for easy, low cost installation
– Easy wiring, piping connections.
– Mounting holes, slots speed hanging.
– Requires no expensive ductwork.
– Ideal for new construction or renovation.

• Blue fin with Epoxy and Hydrophilic coating
– Prevents dirt from sticking to the fins.
– Condensation water flows and water away dirt.
– Anti-corrosion caused by oxidation.
– Increases the efficiency of heat exchanger.

• MERV 14 (F8) PM2.5 Filter
– Easy Handling, installation and removal.
– Available with anti-microbial.
– 2″ deep high efficiency and light weight.
– For high quality air supply, creates more comfort and healthy environment.
