Description
UNI-Aire Chilled Water Fan Coil Unit
แอร์คอยล์น้ำเย็น UNI-Aire SAHH-W แบบต่อท่อลม
แอร์เชิงพาณิชย์ยูนิแอร์ UNI-Aire ชนิดคอยล์น้ำเย็นแบบต่อท่อลม (Duct Type/AHU)
ขนาดของ BTU ที่มีให้เลือก
80,000 BTU | 90,000 BTU | 100,000 BTU | 120,000 BTU | 150,000 BTU | 200,000 BTU | 250,000 BTU
300,000 BTU | 400,000 BTU | 500,000 BTU | 600,000 BTU | 700,000 BTU | 800,000 BTU
รายละเอียดสินค้า
– คอยล์น้ำเย็น แบบต่อท่อลม
– ขนาดความเย็น 80,000-800,000 BTU
– High Static Pressure
FCU Model
SAHH008W | SAHH009W | SAHH010W | SAHH012W | SAHH015W | SAHH020W | SAHH025W
SAHH030W | SAHH040W | SAHH050W | SAHH060W | SAHH070W | SAHH080W
Product Features
• Compact Size: Small footprint requires minimal installation space.
• Easy to Install: Terminal block is located outside for easier wiring connection.
• Easy Maintenance Filter: Filter is located outside the casing for easier removal and cleaning.

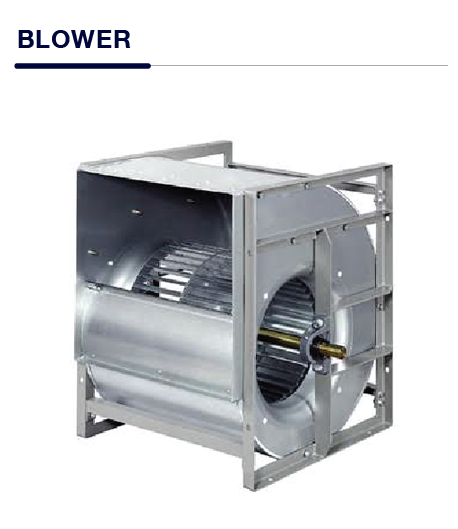

Blower
Fans are designed with forward curved impellers. The drive is a belt driven type; it is adaptable to high static pressure with maximum airflow. All drive components are factory-lubricated and dynamically balanced.

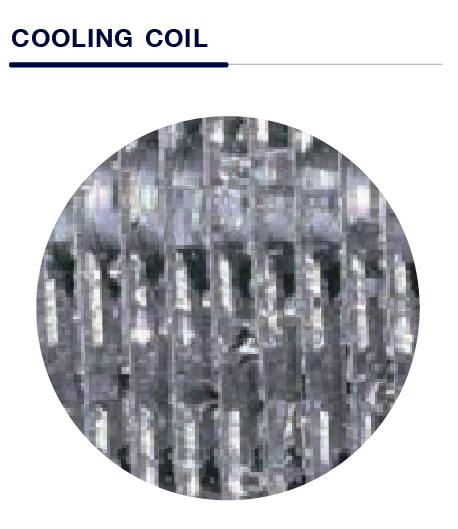

Cooling Coil
The cooling coil is Aluminum fin with copper tubes that makes high heat transfer efficiency.

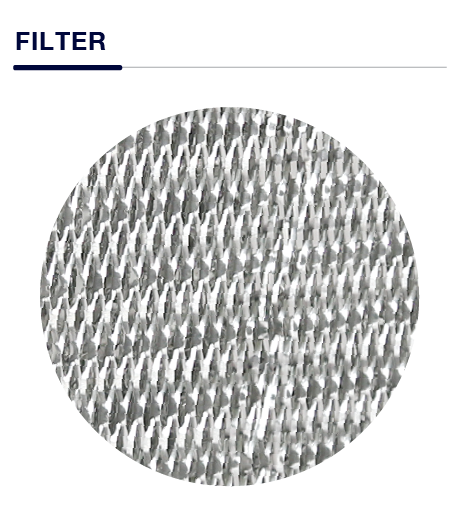

Filter
Washable 1” aluminum filter or optional special filters, such as synthetic filters.
รายชื่อรุ่นแอร์คอยล์น้ำเย็น UNI-Aire SAHH-W Series (Chilled Water Coil, Duct Type/AHU)
| FCU Model | BTU |
|---|---|
| SAHH008W | 80,000 |
| SAHH009W | 90,000 |
| SAHH010W | 100,000 |
| SAHH012W | 120,000 |
| SAHH015W | 150,000 |
| SAHH020W | 200,000 |
| SAHH025W | 250,000 |
| SAHH030W | 300,000 |
| SAHH040W | 400,000 |
| SAHH050W | 500,000 |
| SAHH060W | 600,000 |
| SAHH070W | 700,000 |
| SAHH080W | 800,000 |
