Description

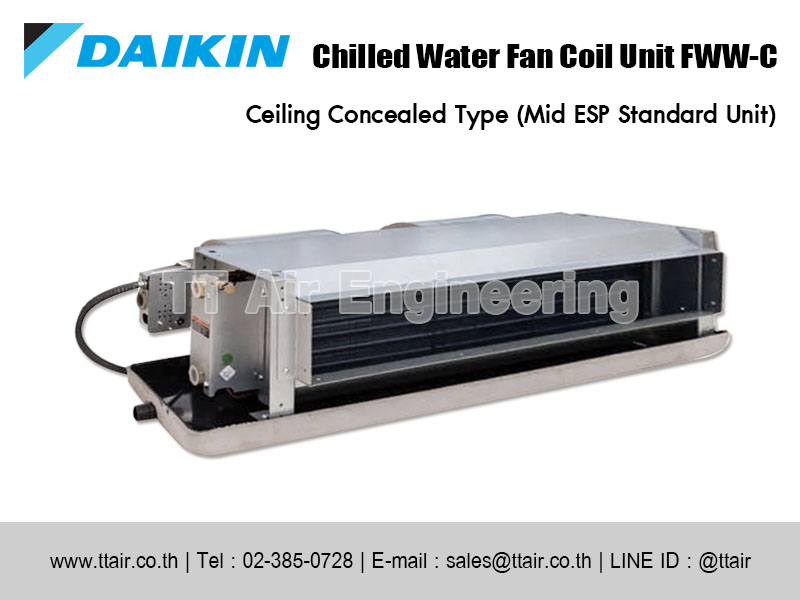

DAIKIN Chilled Water Fan Coil Unit
แอร์คอยล์น้ำเย็น DAIKIN FWW-C/F/H Series แบบท่อลม (Ceiling Concealed Type-Mid ESP Standard Unit)
FCU Model
FWW200C | FWW300C | FWW400C | FWW600C | FWW800C
FWW1000C | FWW1200C | FWW1400C | FWW1600C | FWW1800C
FWW200F | FWW300F | FWW400F | FWW600F | FWW800F
FWW1000F | FWW1200F | FWW1400F [ FWW1600F | FWW1800F
FWW200H | FWW300H | FWW400H | FWW600H | FWW800H
FWW1000H | FWW1200H
Product Structure
• Centrifugual impeller
The centrifugal double-suction fan featuring high-efficiency wide impeller and forward-curved multiblade is adopted to implement low speed, large air flow and low noise.
• High-efficiency motor
High efficiency and energy saving, powerful, stable and quite operation; configuration of the international brand NSK bearing, ensuring efficient, safe and maintenance-free operation.
• Plastic-coated metal hose
The cable protection pipe for the motor uses plastic-coated metal hose; the plastic-coated metal hose is light in weight and well flexible, with outstanding barrier property; The hose is resistant to corrosion, wear and high temperature; it has good insulation property and can better protect safety in use.
• High-efficiency heat exchanger
Formed using high quality copper tubes and highly efficient hydrophilic aluminum fins through mechanical expansion joint to reduce heat resistance; Quasi counterflow fan coil design enables thorough heat exchange between air and water to guarantee high efficiency in heat exchange.
• New self-slope drain pan
The self-slope structure design ensures quick drainage of condensate water; with spray on both sides for anti-corrosion, the tray surface is cleaner; the integrated design is adopted to avoid cold bridges.
• Manual air vent valve
The unit is configured with manual air vent valve for convenient operation, quicker discharge, and easier installation. The valve is placed at the highest point to guarantee thorough discharging of air in the system and ensure the heat exchange effect.
