Product Features

• Customised for High Delta-T Application

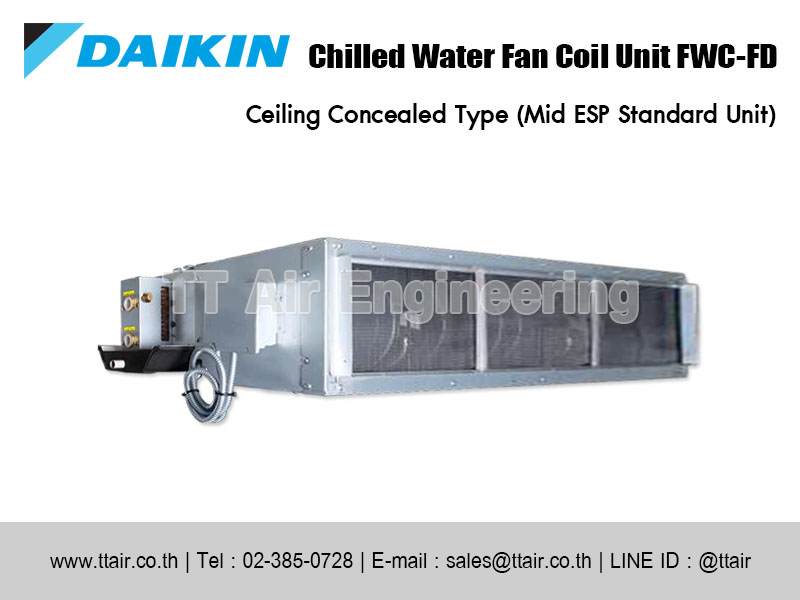

FWC-FD series caters for applications requiring high water temperature difference (up to 9°C) such as district cooling. At such conditions, FWC-FD performance and capacity can be well maintained.

• Ease of Installation and Serviceability
The FWC-FD series are flexible, easy to install and service.
Interconnected air filters: All air filters are interconnected and can easily be removed during servicing.
Bottom accessibility: Removable access panel at bottom for inspection without removing the entire unit from the ceiling.

• Metal Construction
Components and parts of the FWC-FD series such as casing, drain pan and blower are made of metal for its solidness and compliance to fire regulation.

• FCU Selection Software
In support of FCU sales, the FCU Selection Software is available for the ease of unit selection for projects.

• Eurovent Certified and Listed
The FWC-FD series are Eurovent certified. Its performance are tested according to the European and International standards.

• Various Options to Meet Project Requirements
The FWC-FD series have several options that are readily available from the factory without modification:
– Pipe connecting direction: Right piping and left piping (facing FCU air discharge).
– Insulation type: Standard with PE insulation, option with NBR insulation (Class 0 Fire Retardant).
– Filter type: Standard with 8mm saranet filter, option of 1 inch (nominal) aluminium mesh filter.

• Compact Design
Considering the installation space, the FWC-FD series features low height for low ceiling space. Throughout the entire series, unit height remains at 247 mm while its unit depth maintains at 552 mm.
